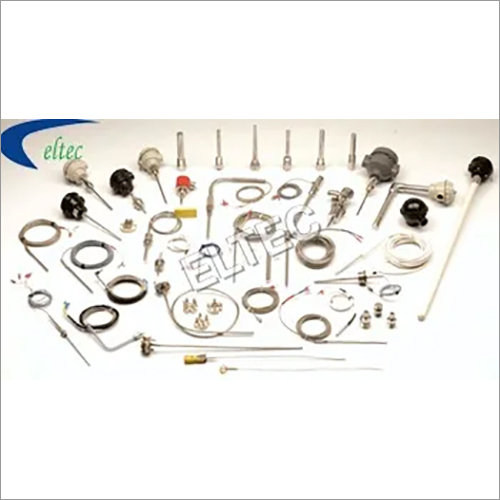

TEMPRATURE SENSOR THERMOCOUPLE

TEMPRATURE SENSOR THERMOCOUPLE
TEMPRATURE SENSOR THERMOCOUPLE
Product Description

TEMPRATURE SENSOR THERMOCOUPLE

THERMOCOUPLES are designed to suit various applications. Thermocouple assemblies are generally used to measure temperature up to 1800 °C.

DOWNLOAD DESCRIPTION BELOWs
  • THERMOCOUPLE & RTD(TEMPRATURE SENSOR)
  • TYPES OF THERMOCOUPLE :

    • Bayonet Thermocouple Assemblies of various types up to 600 °C
    • Sheathed Thermocouple in various sizes for temperature applications up to 1200 °C.
    • High Temperature Ceramic Sheathed Thermocouple for applications up to 1800 °C.
    • Mineral Isulated Thermocouple assemblies for sponge iron & other industrial application

    Industies Served

    • Power
    • Steel
    • Sponge Iron
    • Metals & Mining
    • Cement
    • Fertillizers
    • Chemicals & Petrochemicals
    • Plastics
    • Glass
    • Textiles
    • Pharmaceuticals
    • And Many More

    Bayonet Thermocouple Assemblies:

    Bayonet Thermocouple Assemblies in standard calibration such as J Type, K type etc.

    • Various types such as Straight, L Shaped, Spiral, Washer, Screw & Bolt type
    • Length in 1 Mtrs., 2 Mtrs., 3 Mtrs. etc. as per requirement
    • Mainly used in Plastic Molding Machinaries, Textile & Pharmaceutical Industries.

    Mineral Insulated Thermocouple :

    Mineral Insulated Thermocouple assemblies manufactured from the best quality MI Cables.

    • Compact insulation of high purity MgO, Alumina, Hafnia Oxide.
    • Protection Sheath: SS 316 / SS 310 / Inconel 600 etc.
    • QRT Type MI Thermocouple with Male Female Connector
    • Configuration: Simplex, Duplex
    • Available in various sizes from 1.5 to 8mm.
    • Fast Responding & durables

    Sheathed Thermocouple :

    • Type: J, K, T, E, N etc.
    • Protection Sheath: SS 304 / SS 316 / SS 310 / Inconel 600 / HRS 446 Ceramic etc. depending upon temperature & applications.
    • Configuratin: Simplex, Duplex, Multi Point
    • Process Conn.: Screwed or Flanged
    • Enclosore: Alu. Die Cast Head to IP 65 / IP 67

    High Temperature Thermocouple Assemblies:

    • Type: Thermocouple Calibaration such as R, S, B.
    • Temp. Rnage: Designed for Temp. Range up to 1800 °C
    • Protection Sheath: Ceramic KER 710 / 610
    • Configuratin: Simplex, Duplex, Multi PointProcess
    • Conn.: Screwed or Flanged
    • Enclosore: Alu. Die Cast Head to IP 65 / IP 67
